P1E1 plates – 1 axis tracking
49,50€ w/o VAT per box of 5 pairsBox of 5 pairs of 2 P1E1 plates for tracking on 1 axis. Accessories for E1 gauge.
P2E1 plates – 2 axis tracking
74,50€ w/o VAT per box of 5 tripletsBox of 5 triplets of 3 P2E1 plates for 2-axis tracking. Accessories for E1 gauge.
G1 high protection anti-UV
8,50€ w/o VATProtection with anti-UV filter for G1 gauges fixed outside (delivered with impact anchors)
Glue
17,50€ w/o VATGlue rapid hardening in twin syringe
Impact anchors kit
37,30€ w/o VATKit for mechanical fixing to the structure wherever the condition of its surface does not allow the use of self-adhesive tabs (1 drill + 1 screwdriver + 40 impact anchors)
R1 Shear kit
29,70€ w/o VATShear monitoring kit for R1 gauge
R1 Misalignment kit
24,50€ w/o VATMisalignment kit for R1 gauge
R1 Extension kit
44,25€ w/o VATR1 gauge extension kit
SDS+ drill Ø13mm
12,00€ w/o VATØ13 mm SDS+ drill bit for R1 EPDM plugs
R1 battery 3.6V – 13Ah
25,00€ w/o VATSAFT battery with connector for R1 gauge
Mechanical Fixing Kit
15,00€ w/o VAT per pack of 50 unitsBag of 50 anchors and screws for mechanical fixing on surfaces unsuitable for self-adhesive mounting

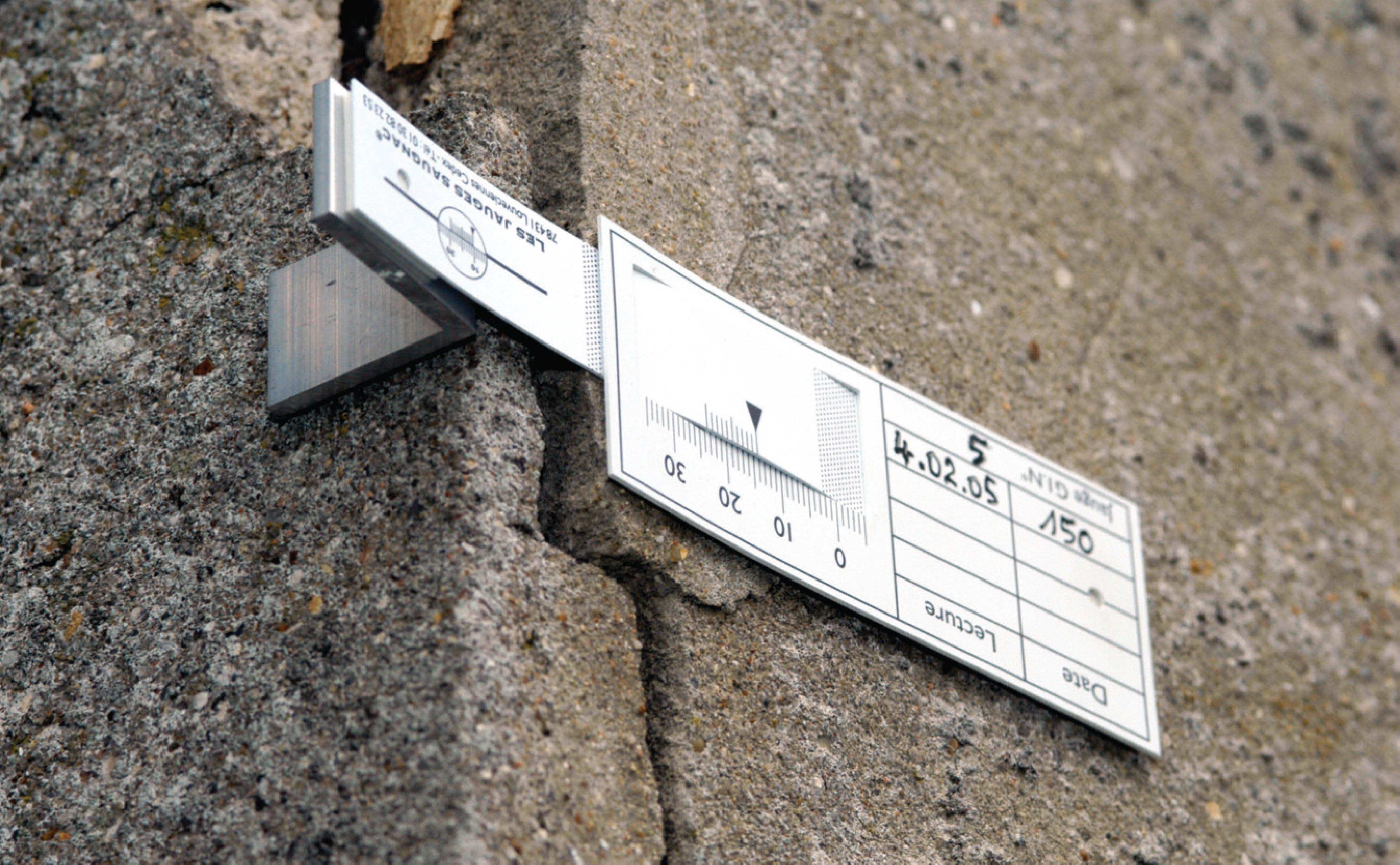

Aluminium angle bar
9,90€ w/o VATFor measuring the variation in a crack in a vertical or horizontal internal angle (with self-adhesive tabs and 1 impact anchor).
G3 intermediate plate
9,40€ w/o VATTo install the G3 gauge if surface is irregular, damaged, damp or of poor quality. Delivered with impact anchors.
G3 high protection
119,00€ w/o VATG3 Protective cover in IP65 aluminium. Fourni avec visserie. Delivered with impact anchors.
G3 protection
48,50€ w/o VATG3 Protective cover in thermoformed plastic. Fourni avec visserie. Delivered with impact anchors.

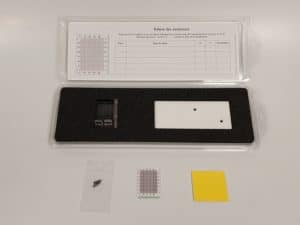

G3 recording kit
79,70€ w/o VAT per kit (with G3 gauge G3 sold separately)For graphic recording of structural yielding. To be mounted on the G3 Gauge. This new device records the maximum and minimum distortion on the graph.
Stainless steel bracket for G5 gauge
48,40€ w/o VAT la paireFor fixing the G5 gauge with an angle bar when the gauge can not be attached to the cross-section of the retaining wall.
G5 protection
73,60€ w/o VATG5 Protective plastic casing if the G5 gauge is exposed to the weather.
G5 high protection
224,50€ w/o VATG5 Protective cover in IP65 aluminium. Delivered with impact anchors.
G6 high protection anti-UV
9,50€ w/o VATProtection with anti-UV filter for G6 gauges fixed outside. Delivered with impact anchors.
Magnetic baseplates
115,20€ w/o VAT per box 2 unitsPack of a set of 2 baseplates for fixing the 3Dim. gauge.
Aluminium extension
106,60€ w/o VATAdditional extensions in treated aluminium, 0.50 m long, which are screwed into position between 2 graduated rods.
