3Dim Gauge – Movement in 3 dimensions

2.390,00€ w/o VAT

  • Measures the movement of a structure in 3 dimensions
  • Removable gauge positioned on magnetic baseplates
  • Resolution: 0.1 mm for the translation vernier and 0.2° of angle for the 2 rotation verniers
  • Excel file supplied on request to assess the resulting movement in an X, Y, Z coordinate system.

Made in France

  • 0.1 mmAnd 0.2° in rotation
  • 3 axesMovements in X, Y and Z
  • RemovableOn magnetic baseplates
  • Structures and cliffsBaseplates for outdoor use

Technical specifications

ResolutionLinear vernier: 0.1 mm
Angular verniers: 0.2°
Type of monitoringMonitoring of movement on 3 axes
FixingBaseplates fixed with the fixings supplied. Can also be fixed with epoxy adhesive or chemical anchoring.
DimensionsCase: 27 x 23 x 8.5 cm
Gauge with extension: 6 x 43 x 5 cm
Weight1 kg (complete case)
300 g (gauge only)
MaterialGauge: black anodised aluminium (high strength)
Baseplates: aluminium (stainless steel available as an option)
Measuring rangeapprox. 25 cm (possible variation between the maximum and minimum readings)
Centre-to-centre distance between the two baseplatesfrom 10 cm (minimum) to 35 cm (maximum) with the extension supplied in the case
Coefficient of expansion23 × 10⁻⁶ m/m/°C

3Dim gauge – Precision and versatility for structural monitoring

The 3Dim gauge is the universal instrument for analysing complex deformation in structures. Suitable for any type of structure or cliff, it measures with great precision the relative movements of two elements along the three axes of space (X, Y and Z).

It gives engineers and experts a detailed understanding of how structures are changing, which is essential for making informed decisions on repair, strengthening or long-term monitoring.

Diagram: 3Dim gauge fixed between two walls at an angleDiagram: 3Dim gauge fixed between a leaning wall and a ceiling
Diagram: 3Dim gauge fixed on both faces of a cornerDiagram: 3Dim gauge fixed on two elements at different heights

A precise, removable and durable instrument

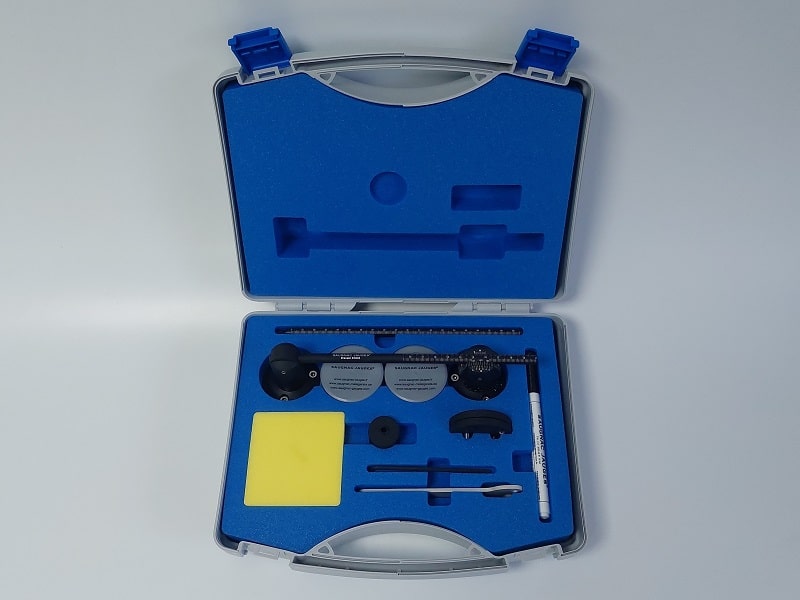

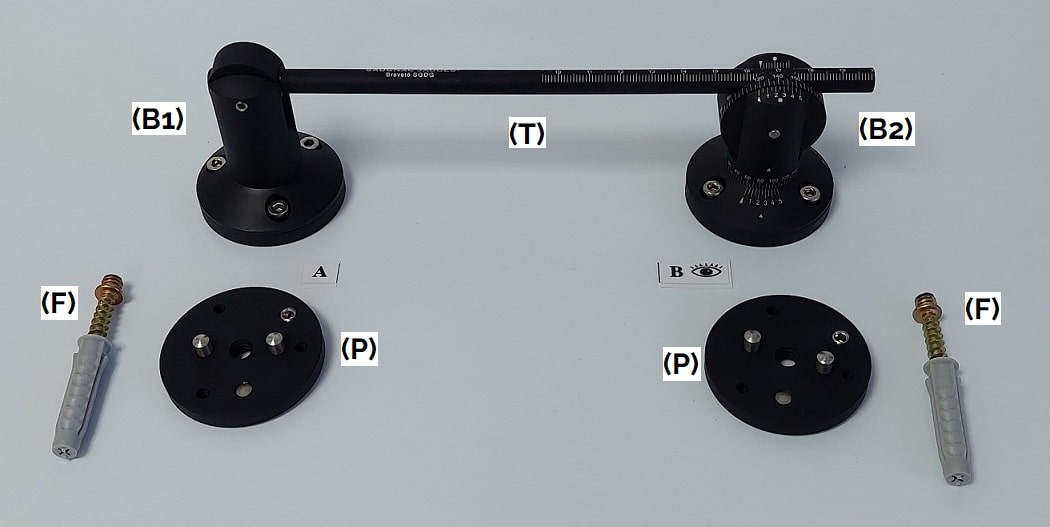

Removable and reusable, the 3Dim gauge is placed temporarily on magnetic aluminium baseplates fixed to the structure. After each reading, it is removed and stored in its carrying case, which ensures its durability and reliability for decades. The baseplates stay in place and provide a stable reference for all readings.

Robust and designed to withstand outdoor conditions, the baseplates are supplied in pairs with their protective covers. For the most aggressive environments, such as coastal areas, stainless steel versions and special screwed-on covers can be supplied on request.

Designed for use on site

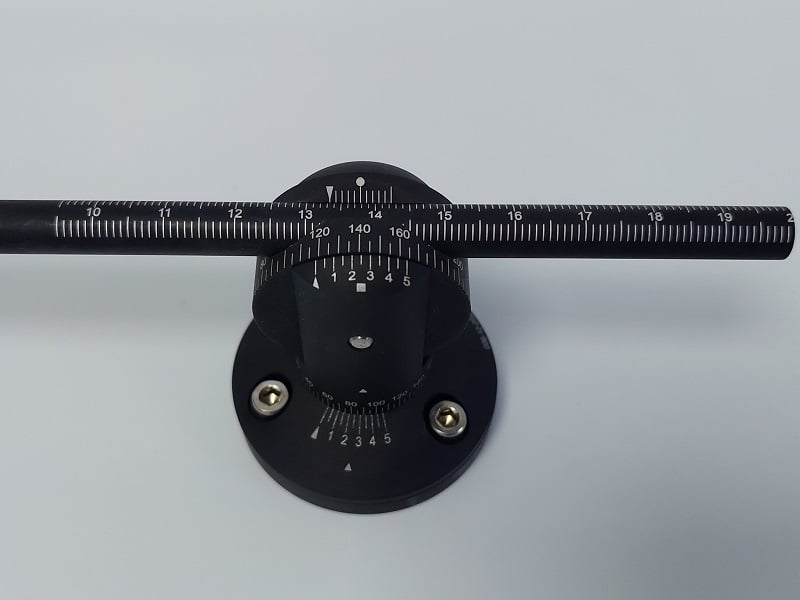

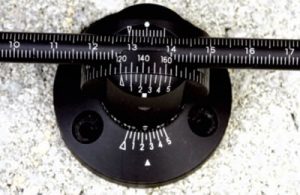

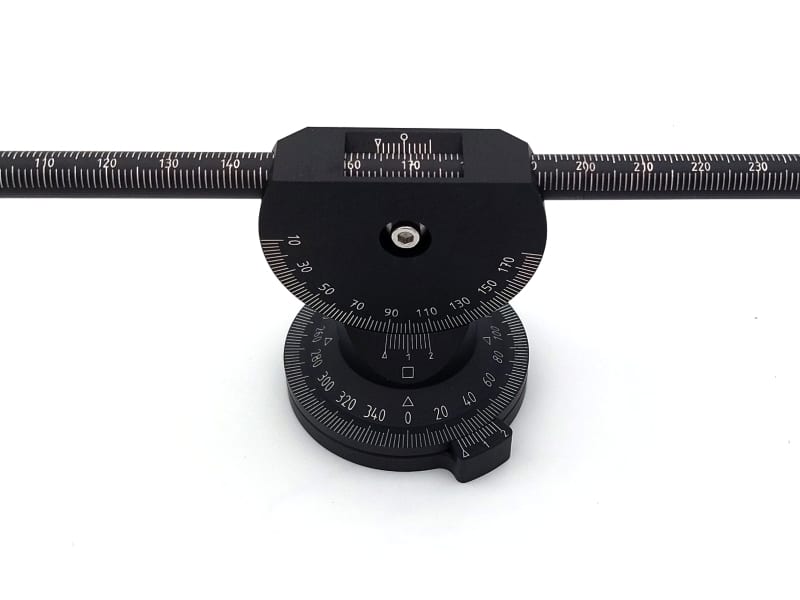

The 3Dim gauge is simple to install and to use. Readings are taken using 3 verniers:

  • a linear vernier with a resolution of 0.1 mm,
  • two angular verniers with a resolution of 0.2°.

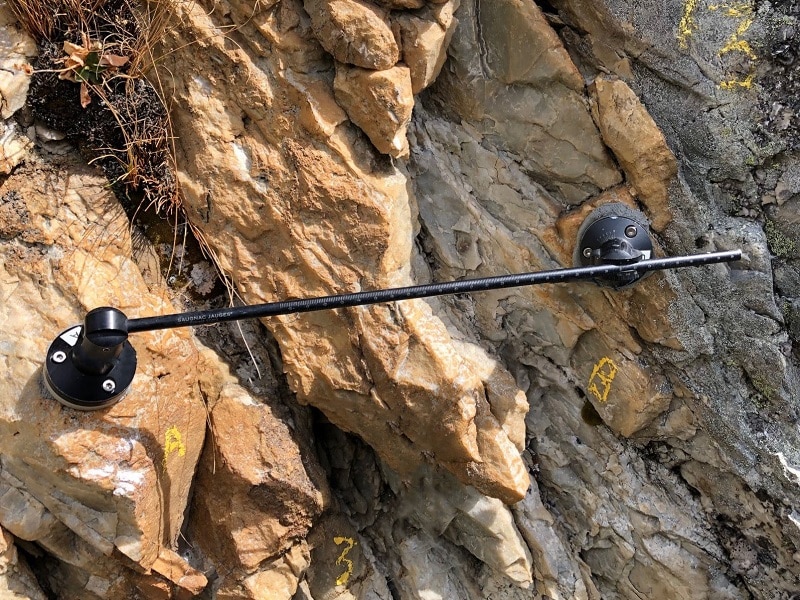

This combination makes it possible to monitor millimetre changes over time, whether in masonry buildings, steel structures, cracked concrete or natural phenomena such as rocks and cliffs. A file for converting readings into an orthonormal coordinate system (X, Y, Z) is supplied on request.

3Dim gauge with its riser to get around an obstacle

A riser is also supplied to get around obstacles during installation.

To suit different site configurations, the gauge can be used with a 20 cm extension (included), giving a centre-to-centre distance of approx. 35 cm. An additional extension of 50 cm (not graduated), screwed between the 2 graduated rods, is available as an option.

Main advantages

  • Versatility: measurement in three dimensions, suitable for many contexts (structures, cliffs, historic monuments…).
  • Durability: gauge stored under cover, weatherproof baseplates, stainless steel options for aggressive environments.

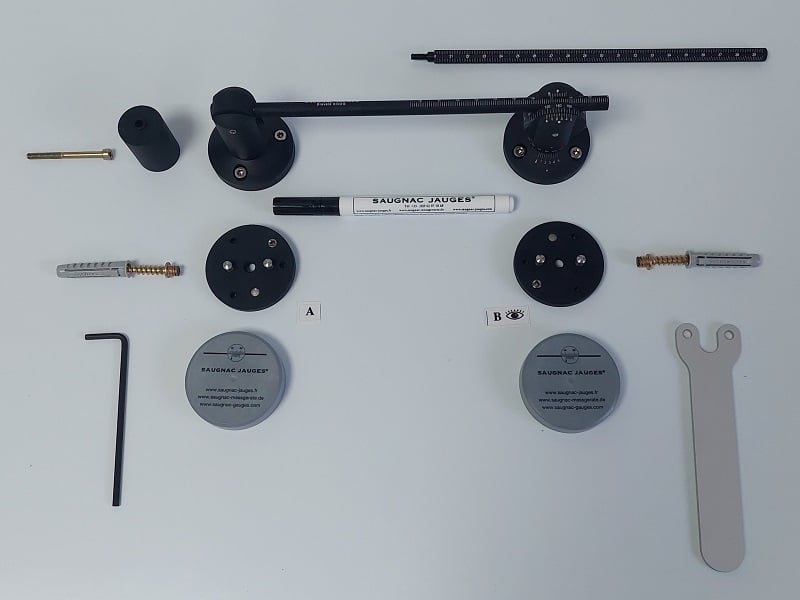

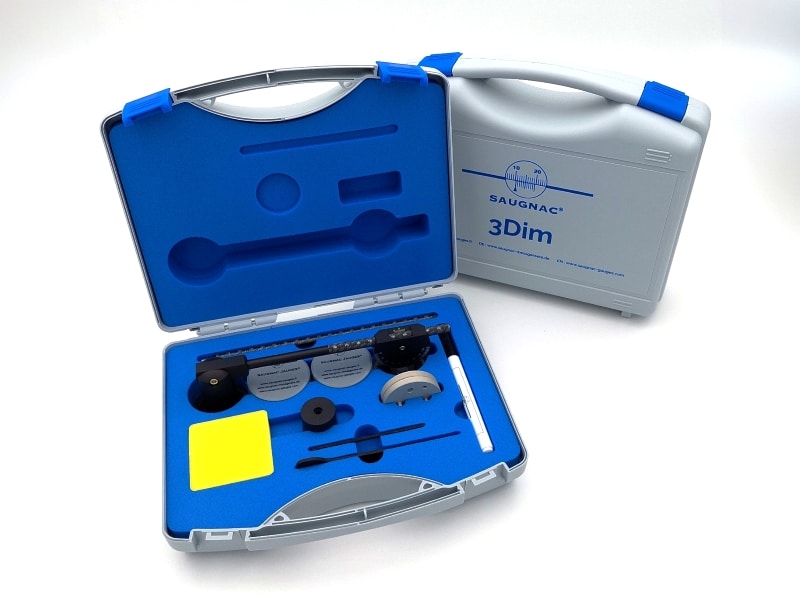

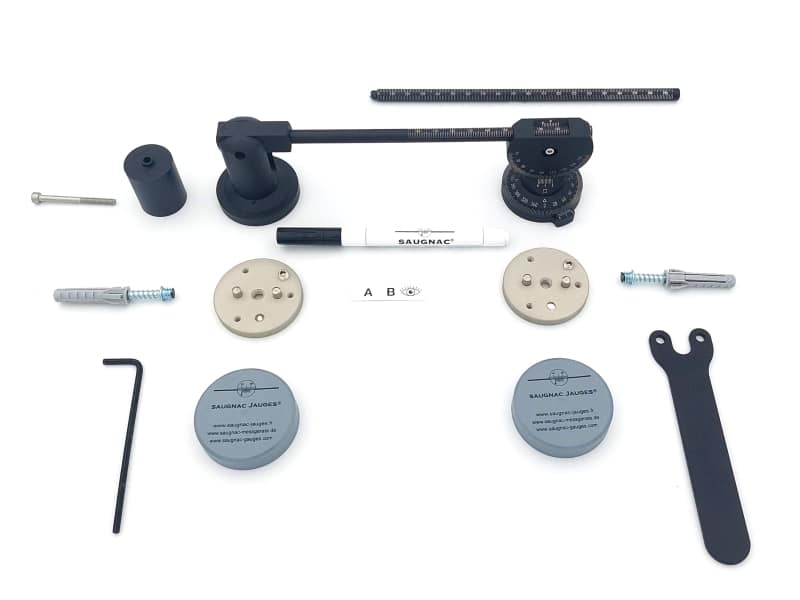

  • Practicality: simple mounting, immediate reading, supplied with a carrying case and accessories.

Simple and secure installation

The baseplates are quick to install and only require a drill with a Ø 8 mm bit.

The sensitivity of the readings depends directly on the distance between the baseplates. For the best results, we recommend installing them as close together as possible and using the extension only when necessary.

A special key is supplied to make it easier to mount the screw and baseplate assembly in the wall plugs.

Fixing a 3Dim baseplateFixing a 3Dim baseplateFixing a 3Dim baseplate

Protecting the baseplates

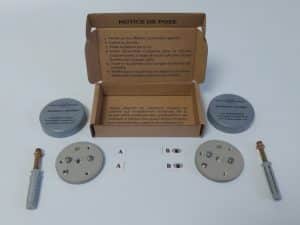

3Dim gauge baseplates with their protective covers

After removing the 3Dim gauge, we recommend protecting the baseplates with the plastic covers supplied. The baseplates are sold with plastic covers on which a reference or the observation site can be written.

In some public places, plastic covers are not always sufficient. We then recommend using screwed-on POM covers (made to order).

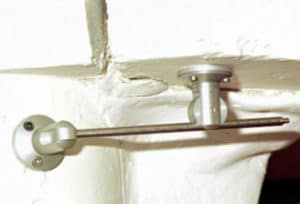

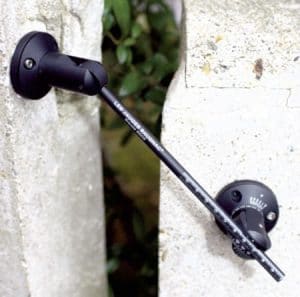

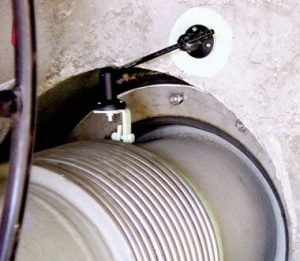

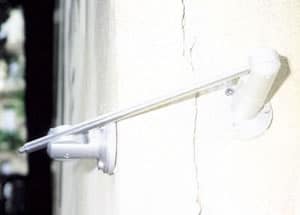

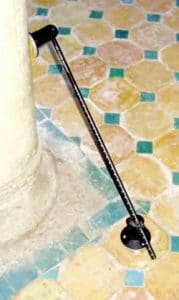

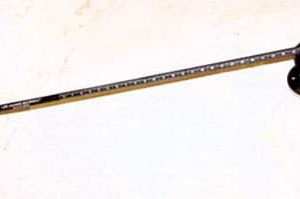

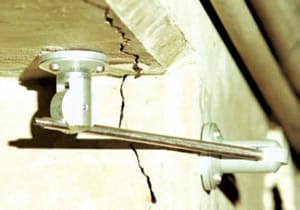

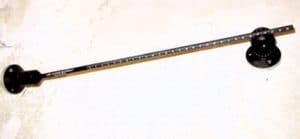

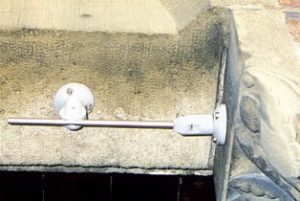

Examples of installation

Thanks to its design, the 3Dim gauge can be used in any type of configuration and is very simple to install. Below are a few examples (NB: some photos show the previous version of the 3Dim):

Frequently asked questions about the 3Dim gauge

What is the 3Dim gauge used for?

The 3Dim gauge measures the relative movements of two elements along the three axes of space (X, Y and Z). It is used to monitor changes over time in masonry buildings, steel structures, cracked concrete and historic monuments, as well as rocks and cliffs.

How are readings taken?

Readings are taken using 3 verniers: a linear vernier with a resolution of 0.1 mm and two angular verniers with a resolution of 0.2°. An Excel file for converting readings into an orthonormal coordinate system (X, Y, Z) is supplied on request.

Does the gauge stay fixed to the structure between readings?

No. The 3Dim gauge is removable: it is placed on magnetic baseplates for the duration of the reading, then removed and stored in its carrying case. Only the baseplates stay in place and serve as the reference for all readings.

How are the baseplates protected between readings?

After the reading, the baseplates are protected with the plastic covers supplied, on which a reference or the observation site can be written. In some public places, screwed-on POM covers are available to order (see protecting the baseplates).

How far apart should the baseplates be?

The centre-to-centre distance between the baseplates ranges from 10 cm to approx. 35 cm with the 20 cm extension supplied. The sensitivity of the readings depends on this distance: we recommend installing the baseplates as close together as possible and using the extension only when necessary. An additional extension of 50 cm (not graduated) is available as an option.

How are the baseplates fixed?

All you need is a drill with a Ø 8 mm bit: the baseplates are fixed with the fixings supplied, and a special key makes it easier to mount them in the wall plugs. They can also be fixed with epoxy adhesive or by chemical anchoring. A riser is supplied to get around obstacles (see installation).

Can the 3Dim gauge be used outdoors or near the sea?

Yes. The baseplates are designed to withstand outdoor conditions, and the gauge is stored under cover in its carrying case between readings. For the most aggressive environments, such as coastal areas, stainless steel baseplates and special screwed-on covers can be supplied on request.
