G3 recording kit
If you would like a quotation or have any questions about the product, please contact us:
- by email at info@saugnac-gauges.com
- by telephone on +33 9 62 07 18 68
79,70€ w/o VAT per kit (with G3 gauge G3 sold separately)
Made in France

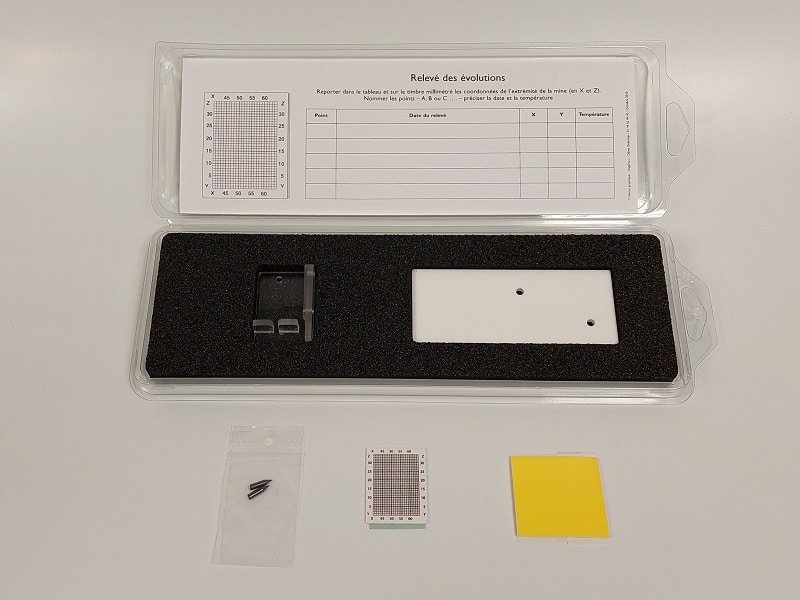

We can supply a graphic recording kit to be mounted on the G3 Gauge sold separately. This kit makes it possible to record structural yielding. This new device records the maximum and minimum distortion on the graph.
Key:

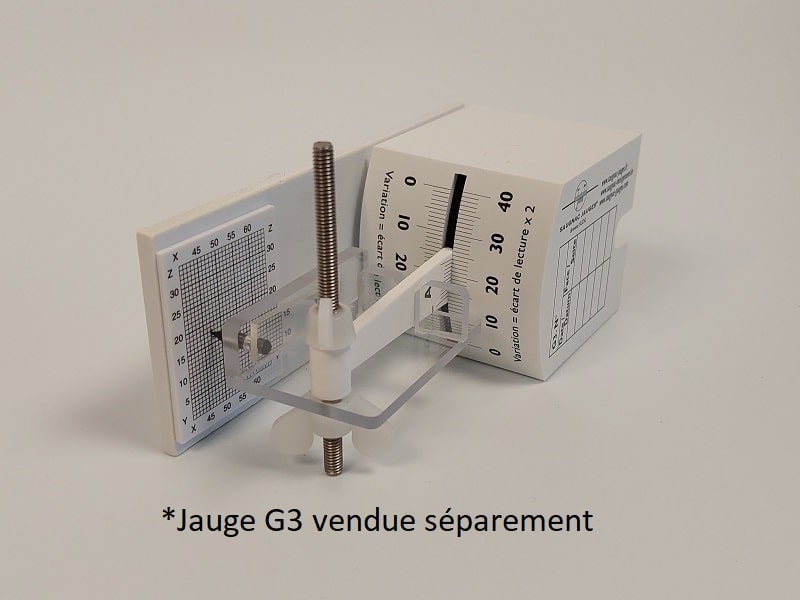

(1) G3 gauge
(2) Intermediate plate
(3) Self-adhesive tab
(4) Intermediate plate attached to the gauge by a self-adhesive tab on the latter’s lateral surface
(5) Self-adhesive millimetre grid, stuck on the plate (4)
(6) Tray holding a lead, fixed to the arm of the gauge with 2 butterfly nuts (9)
(7) Pencil lead
(8) Recording
The tray (6) – holding the lead – is placed astride the arm with the sensor threaded through it. It is held firmly in place by the 2 nuts (9) holding the sensor.

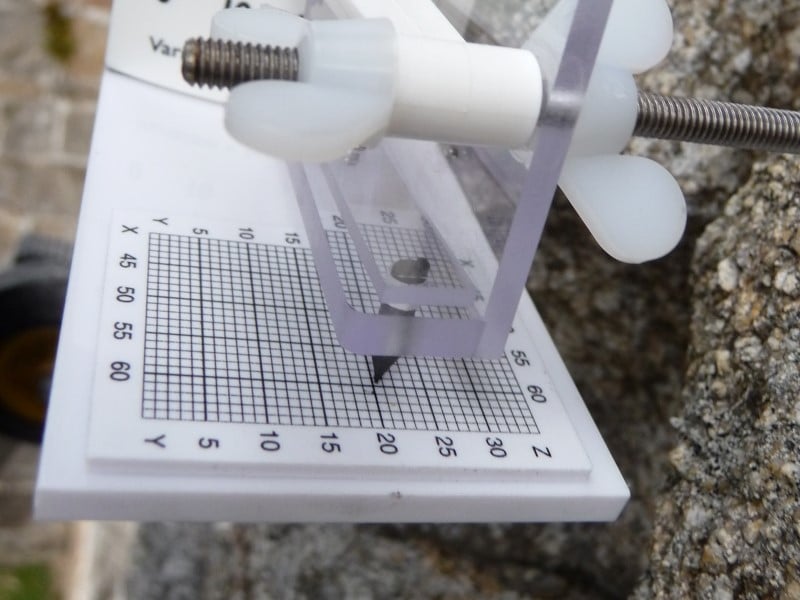

Measures the evolution of horizontal or vertical misalignment/offset between 2 structures. Resolution: 0.1 mm (i.e. 0.2 mm of movement).
