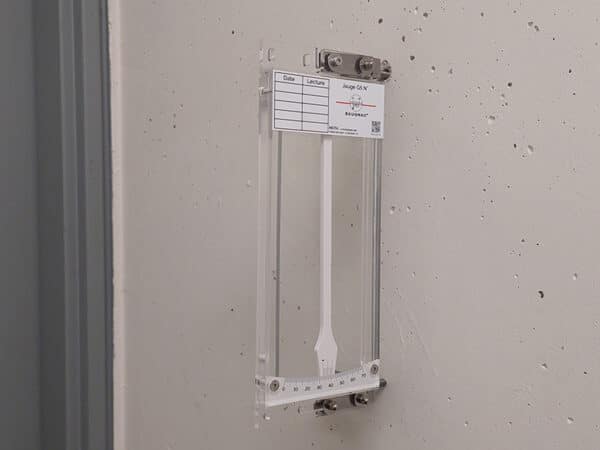

G5 Gauge – Inclinometer

357,00€ w/o VAT

  • To measure changes in the inclination of a wall or balcony
  • Measurement resolution of 0.1 mm = 0.03 degrees.
  • Unique identification by QR code and tracking in the Saugnac.app application
  • Fixed to the surface with the screws supplied. Removable version: G5+ gauge.

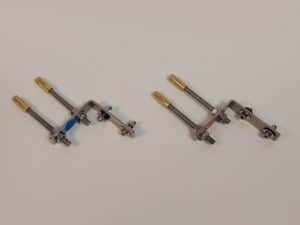

  • Can be fixed perpendicularly with brackets sold separately
  • Supplied in a case with a spirit level and screws for flat mounting

Made in France

  • 0.1 mmI.e. 0.03 degrees of angle
  • InclinationWall, balcony, cantilever
  • Reading trackingSaugnac.app application
  • TransparentDiscreet PMMA gauge

Technical specifications

Resolution0.1 mm, i.e. 0.03 degrees of angle
Type of monitoringMonitoring the inclination or tilting of a wall or a balcony / deck / cantilever (monitoring an angle)
UseIndoor / Outdoor: weatherproof and UV-resistant. If the gauge is to be heavily exposed to the weather, we recommend adding a protective cover.
FixingMechanical fixing with the screws supplied

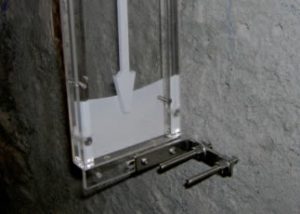

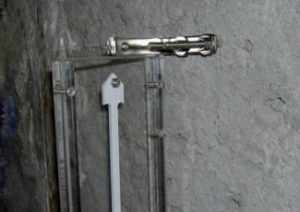

Can be fixed perpendicularly with two brackets (sold separately)
Dimensions270 mm x 100 mm x 20 mm
Weight350 g
Body materialPMMA (Plexiglas)
Needle materialAluminium
Bearing typeBall bearing with double sealing shields

G5 gauge overview

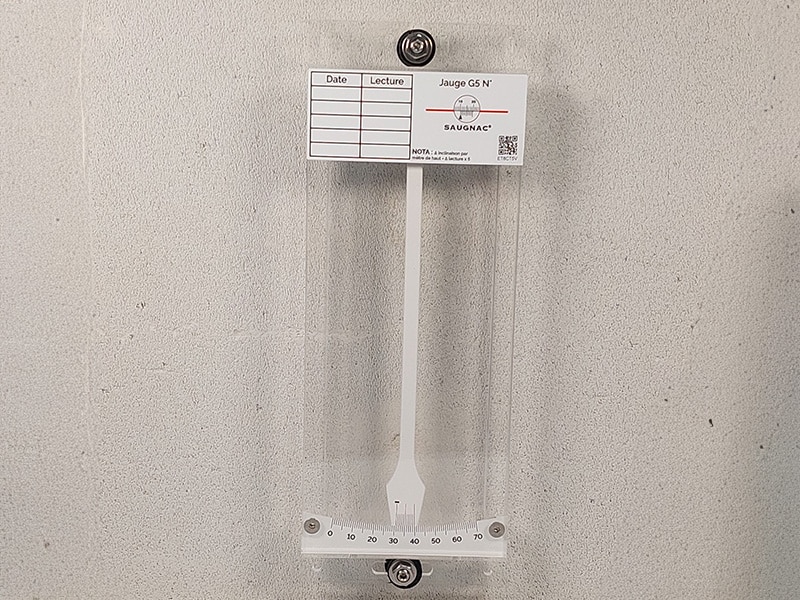

The G5 gauge is an inclinometer designed to measure changes in an inclination or a tilt.

Whatever the position of the gauge, you simply need to know the height of the wall (h) or the length (l) of the structure (balcony, deck, cantilever) to work out, from the difference between readings, the change in inclination (i) or tilt (b).

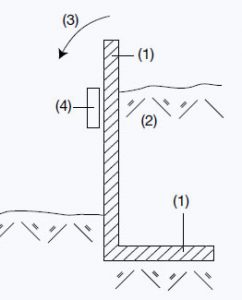

Monitoring changes in the inclination of a wall

Principle of monitoring the inclination of a wall with the G5 gauge

Monitoring changes in the tilt of a balcony

Principle of monitoring the tilt of a balcony with the G5 gauge

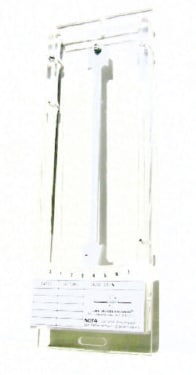

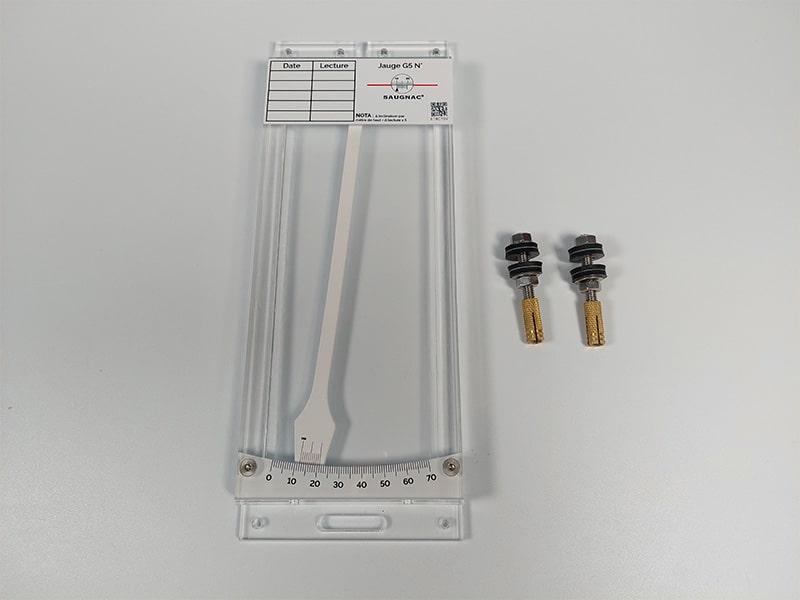

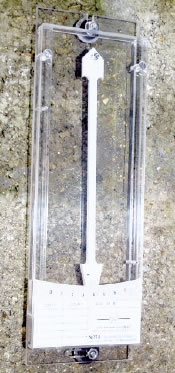

The G5 gauge is transparent so that it is discreet. It is supplied in its protective case with a spirit level. A screw locks the needle to protect the device during transport.

Readings are taken with a vernier to 0.1 mm.

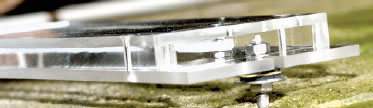

Fixing the G5 inclinometer

The G5 gauge can be fixed in two ways:

Protecting the G5 inclinometer

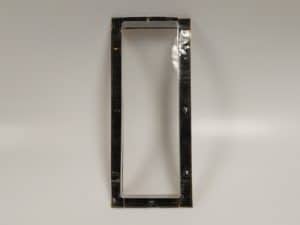

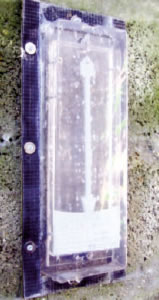

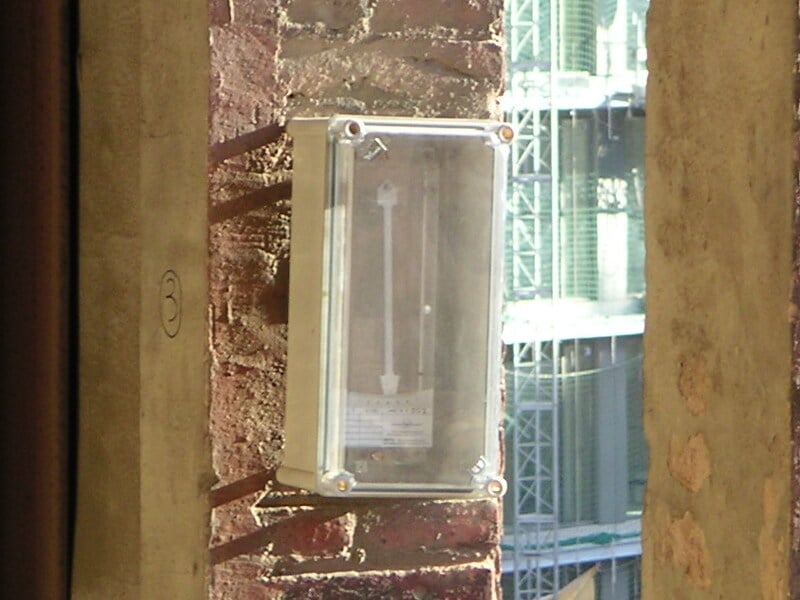

If there is a risk of damage or vandalism, we recommend protecting the G5 gauge with a high-protection aluminium cover. Please note that we also offer a removable version: the G5+ inclinometer, which needs no protection as it does not stay on the surface after the reading.

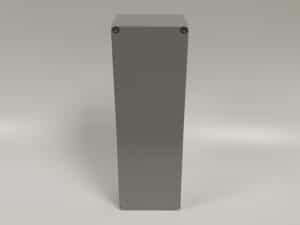

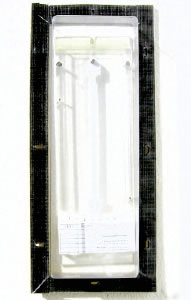

High-protection aluminium cover for the G5 gaugeHigh-protection aluminium cover for the G5 gauge

The cover and the G5 gauge are fixed with studs, nuts and washers.

The covers can be secured with lead seals.

Reading the G5 inclinometer

Stand directly in front of the needle, with your eyes level with the dial, to avoid any parallax error. To make sure you are exactly in front of it, you should not be able to see the sides of the needle.

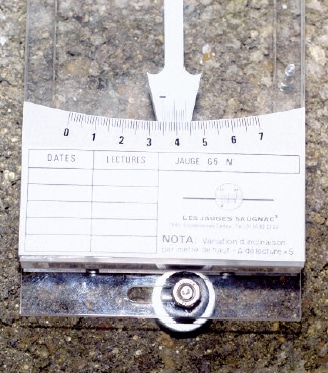

Reading the G5 inclinometer

Read according to the vernier principle:

  • The lower scale is graduated in mm from 0 to 70 mm: this is the measuring scale.
  • The upper scale, on the pendulum needle with the T, is movable: this is the vernier, reading to 0.1 mm (10 vernier divisions correspond to 9 mm on the measuring scale)
  1. Reading the millimetres

    The T mark of the vernier lies between two graduations of the measuring scale. Example: between 28 and 29. The number of mm corresponds to the graduation to the left of the vernier T mark: 28 mm in the example.

  2. Reading the decimal

    Look for the vernier line that coincides with a line on the measuring scale. In the example, vernier graduation 7 coincides with graduation 35 on the measuring scale. In other words, the decimal reading is 0.7 mm.

  3. The reading in the example photo is therefore 28.7 mm

The difference between two consecutive readings, MULTIPLIED by 5, gives the change in mm per metre of height.

So, change in inclination or tilt at the top = Absolute value (M2 – M1) x 5 x H

Example of monitoring the inclination of a wall with the G5 gauge

Example:

Wall height = 4.5 m

  • Reading 1 = 31.6 mm taken on 14/04
  • Reading 2 = 31.9 mm taken on 24/07
  • Change in inclination at the top of the wall = (31.9 – 31.6) x 5 x 4.5 = 6.75 mm

Download the Saugnac.app application to track your readings

The Saugnac web application, completely free and unlimited, is available on PC or smartphone at https://saugnac.app. It lets you:

  • identify each G5 gauge and its readings with its unique QR code
  • save readings in your account
  • calculate the change in inclination
  • retrieve the temperature and humidity via geolocation
  • collaborate with several users on the same gauge
  • manage alert thresholds
  • sort gauges by site and locate them on a map
  • download data in Excel format
  • display graphs automatically
  • share data with other people without an account
  • access the application from your PC or smartphone
  • add readings offline
