Balcony collapse: why should you monitor tilt?

When monitoring at-risk balconies, measuring tilt and cracks is critical. These indicators point to structural deficiencies that can lead to the failure or collapse of a balcony. What causes these defects? How can they be identified, and how can tilt be measured to better assess the risk of a balcony collapse?

Main causes of balcony collapse

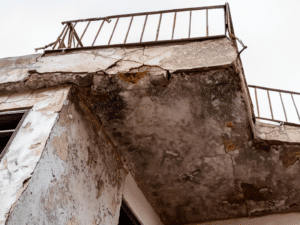

Balcony collapse – common causes and damage patterns

The main causes of collapse vary depending on the construction material used. All balconies share common weaknesses, particularly regarding water damage. However, timber, metal and concrete are not exposed to the same risks.

This article is based on the document published by the AQC on balcony defects.

What is the AQC? The Agence Qualité Construction (AQC) is a French construction quality agency. It brings together all stakeholders in the building industry — architects, contractors, insurers and public authorities — with the aim of analysing, documenting and preventing construction defects. The AQC regularly publishes technical reports on typical damage patterns, including those affecting balconies and other external structural elements.

Collapse of timber balconies

For timber balconies, fungal decay is the greatest risk. The growth of harmful fungi leads to deformation and cracking, which accelerates wood deterioration and can ultimately result in collapse. Other possible causes include incorrect sizing and deformation of the decking.

Collapse of metal balconies

The main risks for metal balconies are corrosion and structural deficiencies in the bracing elements, which are critical to the stability and durability of the structure. In addition, defects at connections can lead to problems with the fastening of metal components.

Collapse of stone balconies

The causes of stone balcony collapse are often linked to inadequate waterproofing. This can lead to water ingress and material deterioration. Furthermore, low frost resistance of the stone can contribute to damage and weakening of the structure.
The choice of an appropriate material is a key criterion that must be considered from the design stage onwards — in accordance with standard NF B 10-601, which sets out general requirements for the use of natural stone.

Collapse of concrete balconies

Concrete balconies can collapse for various reasons. Particularly problematic are water ingress resulting from cracking and inadequate waterproofing. Structural weaknesses, such as excessive deflection of the concrete slab, can also cause the balcony to tilt or collapse. Possible causes include insufficient concrete cover, inadequate reinforcement or faulty anchorage.

In all cases, the natural ageing of the structure amplifies existing weaknesses. Certain signs can provide early warning of an imminent risk of collapse.

What warning signs should you look for?

Several indicators can give early warning of an imminent risk of balcony collapse:

Cracking in various locations

A visible gap between the balcony and the façade indicates unusual movement of the structure.

These cracks can appear longitudinally between the façade and the balcony, laterally between the balcony and a return wall, or at the threshold.

Rust stains at connections

Rust stains at the junctions between the balcony and the façade, or on the underside of the concrete slab, are a sign of reinforcement corrosion. This frequently causes the concrete to spall.

Condition of the waterproofing

Visibly damaged waterproofing or damaged waterproofing elements raise fundamental questions about the structural condition of a building that has been exposed to water.

Common problems include missing or inadequate waterproofing joints, protective waterproof coatings, as well as leaks at rainwater outlets.

What does a change in balcony tilt tell us?

When monitoring a balcony at risk of collapse, observing tilt is of critical importance.

Visible tilt of a balcony is a critical warning sign of imminent collapse. However, the most subtle movements escape detection. To better understand how tilt is developing and to anticipate the risk of collapse or falling debris, appropriate measuring instruments are required.

Saugnac Gauges offers four of them:

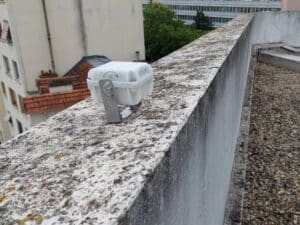

R5 – wireless inclinometer for balcony monitoring

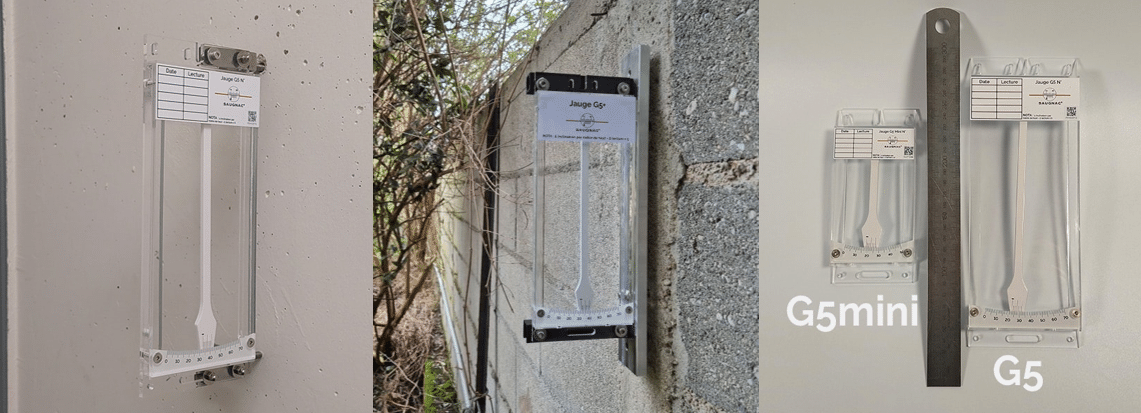

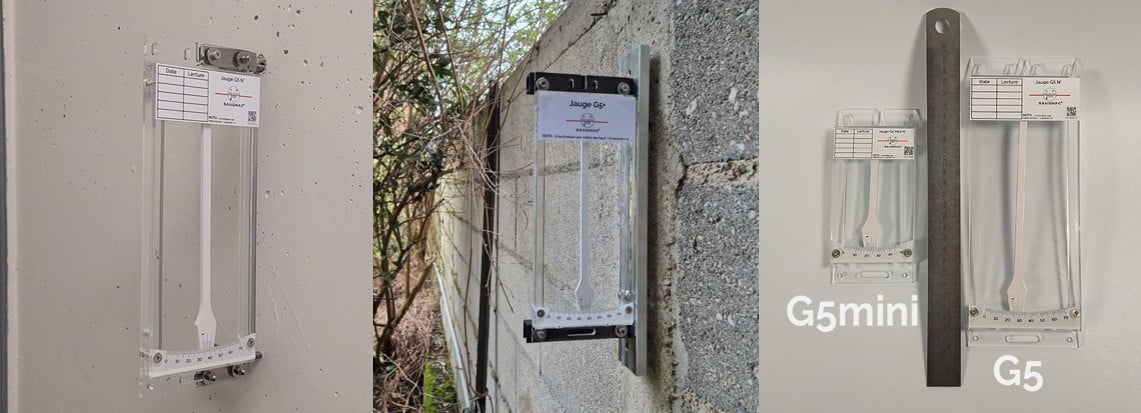

Saugnac inclinometers – product overview

These four measuring instruments are suitable for monitoring the tilt and inclination of various structures, including balconies.

The wireless R5 inclinometer enables tilt monitoring on 2 axes with a resolution of 0.005°, as well as temperature and humidity measurement. It is easy to install and can be configured in just a few clicks via the app. Data is transmitted automatically according to the selected configuration.

The operating principle of the mechanical inclinometers is straightforward and based on a pendulum system: a pointer indicates the degree of tilt. Through precise measurements and logging of readings in a monitoring app, changes over time can be tracked. This makes it possible to determine whether the settling or tilt of the balcony is accelerating, slowing down or stabilising.

The G5 and G5+ inclinometers offer the highest precision with a resolution of 0.03°. The compact Mini version is particularly discreet and easy to handle, though it has a slightly lower resolution of 0.06°.

All three instruments are suitable for outdoor use, being weatherproof and UV-resistant. The G5+ inclinometer allows multiple measurement points to be monitored cost-effectively.

Thanks to its removable probe, it can easily be positioned on various permanently installed brackets, ensuring repeatable and precise measurement at multiple points.

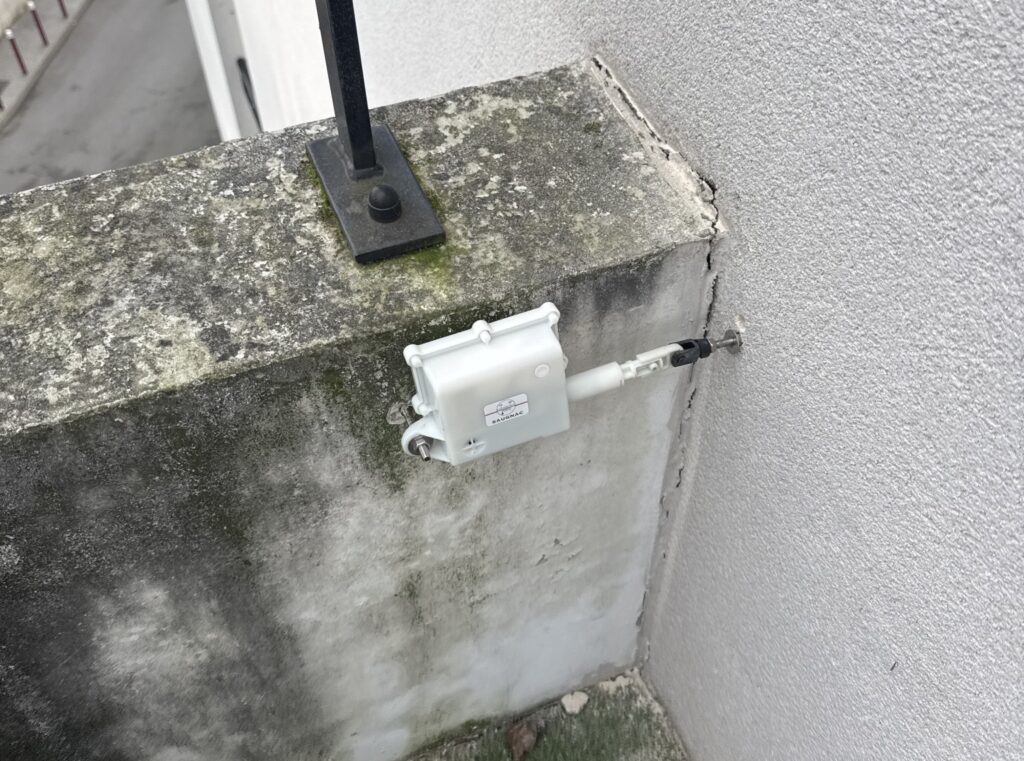

Depending on the configuration, it is also possible to monitor tilt remotely using the wireless crack monitor R1, which is installed at an angle between the wall and the railing:

Remote monitoring of balcony tilt with the R1 crack monitor
