G1.2 Gauge

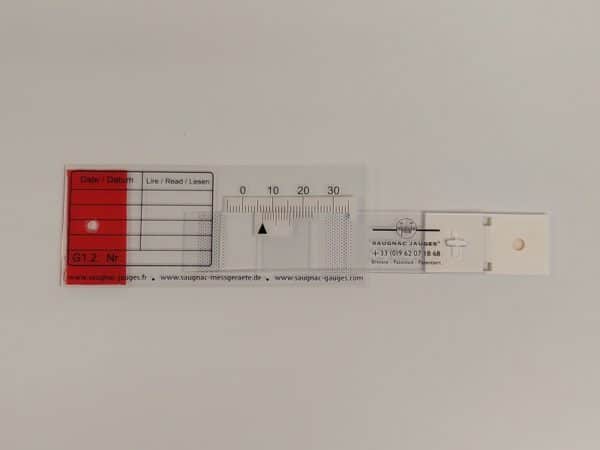

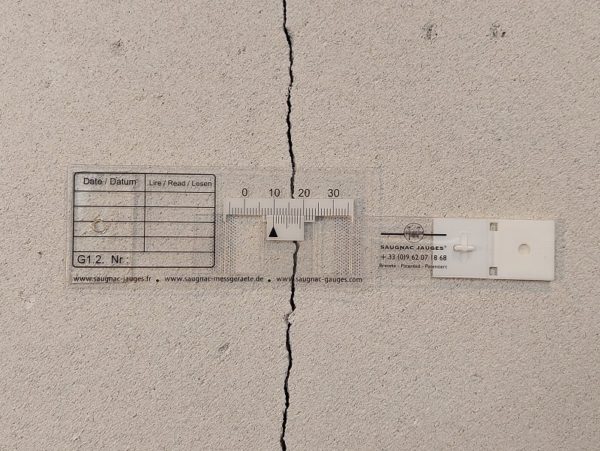

G1.2 transparent gauge for crack monitoring

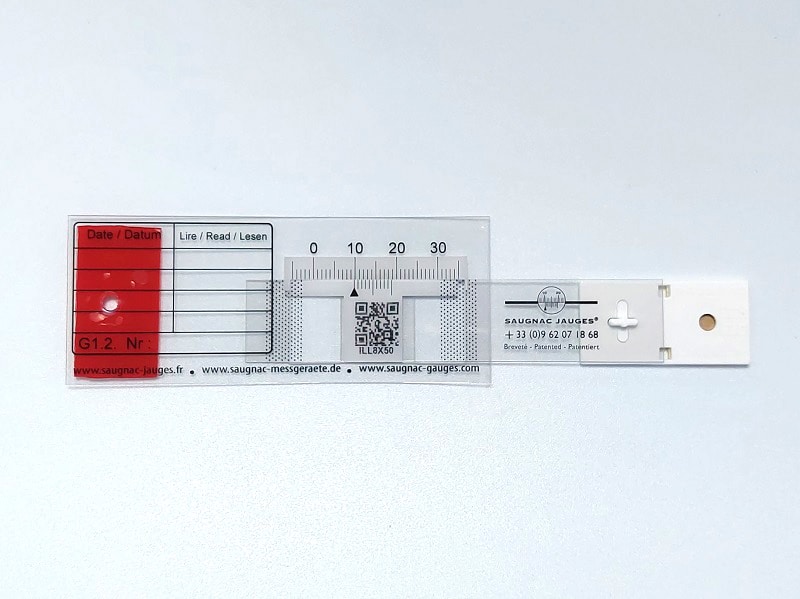

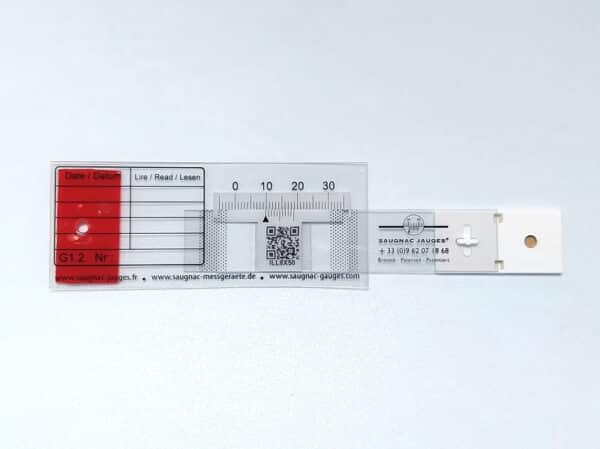

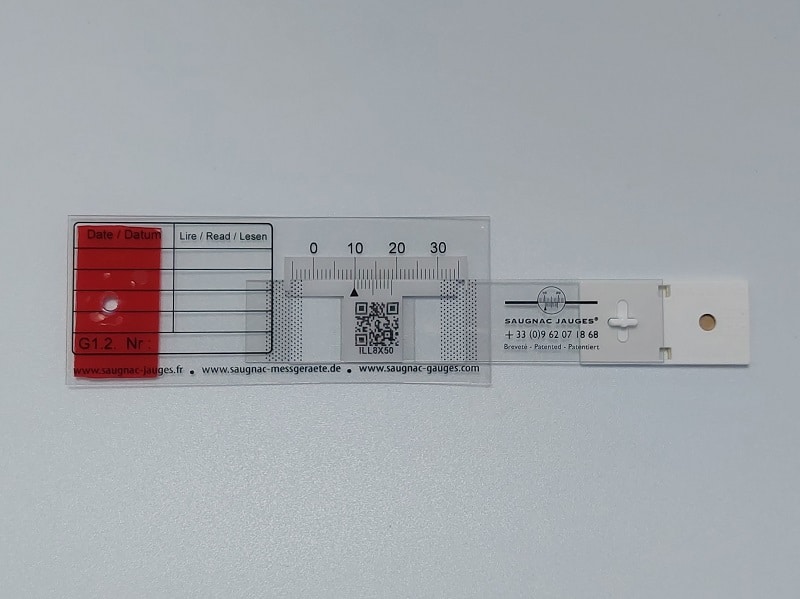

G1.2 transparent crack indicator

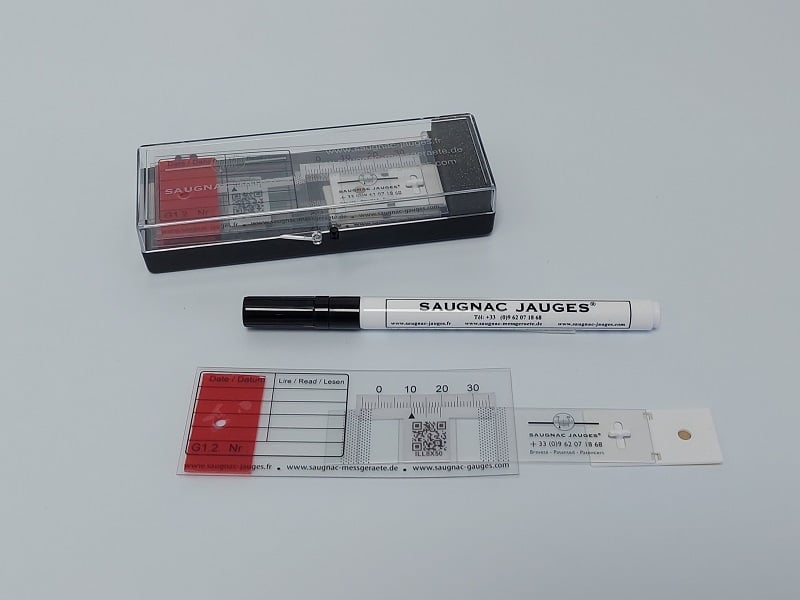

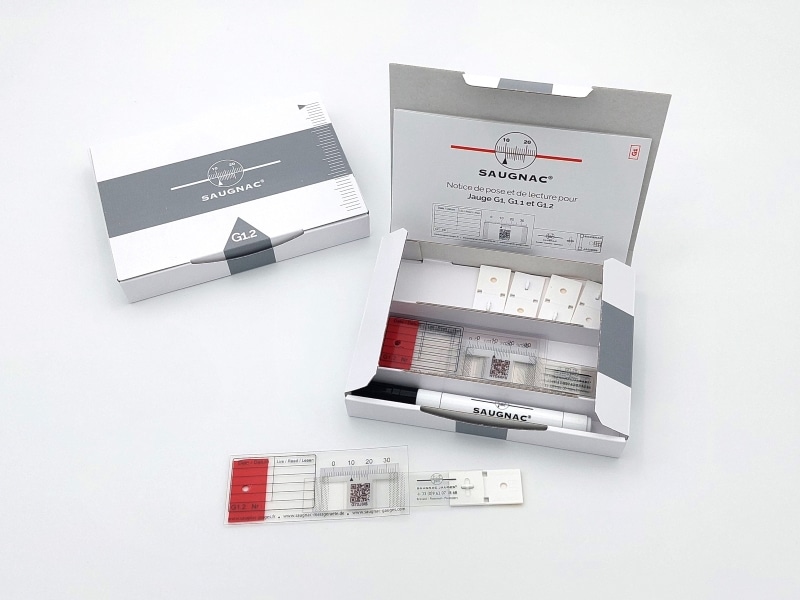

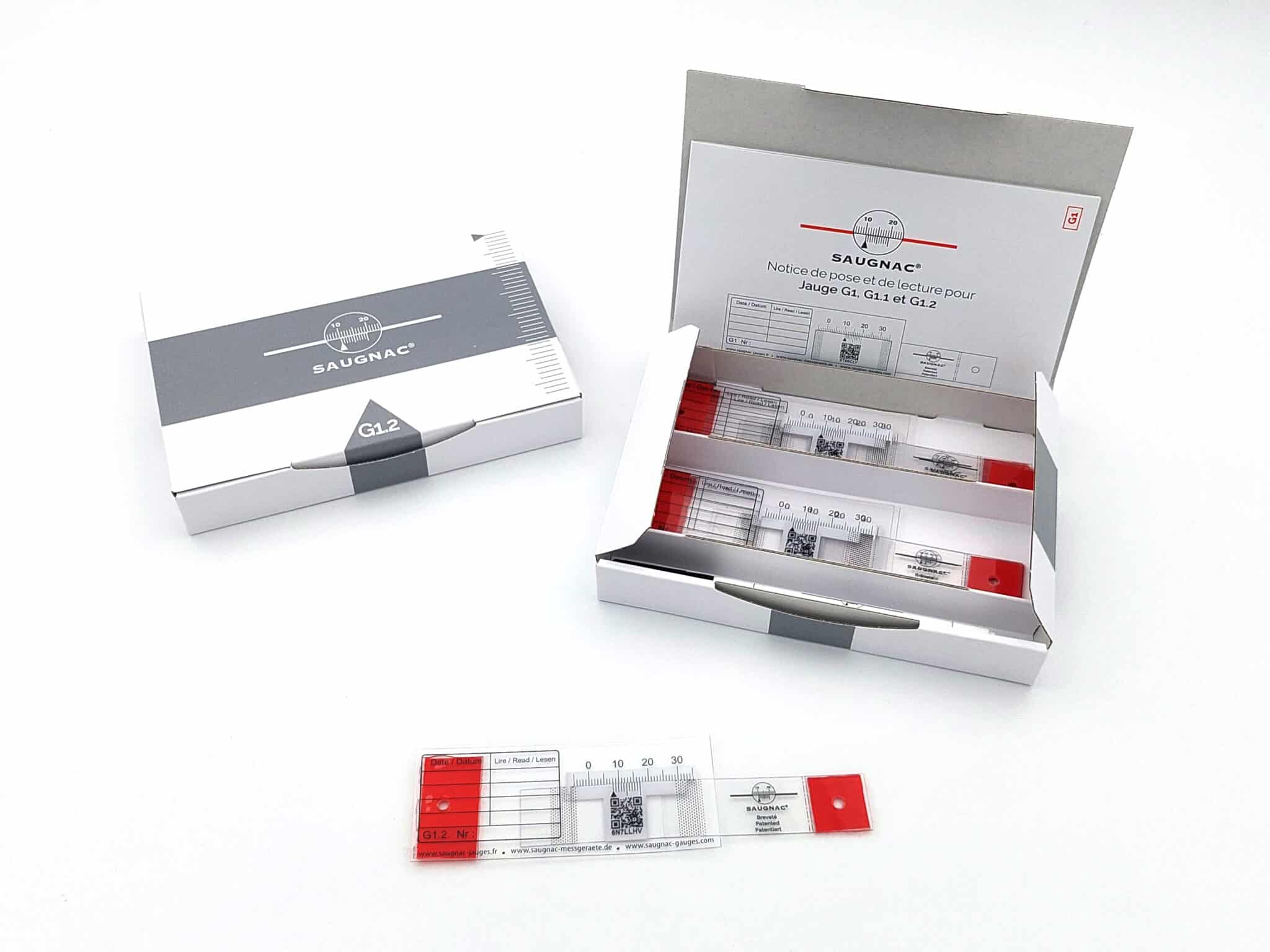

G1.2 transparent crack indicator packaging

92,00€ w/o VAT per box 5 units

  • For parallel lip cracks. Transparent gauge recommended for quality structure.
  • Reading the crack with a resolution of 1/10th of a mm.
  • Automatic reading and monitoring of measurements with Saugnac.app
  • Simple fixing with self-adhesives supplied or mechanical fixing with pre-drilled holes
  • Can be fixed at an angle with the folding bar supplied

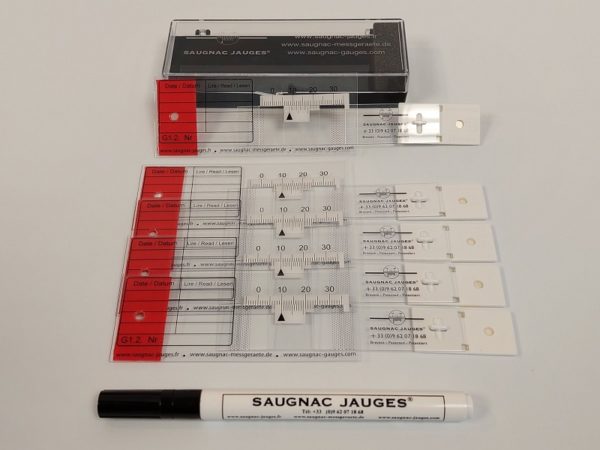

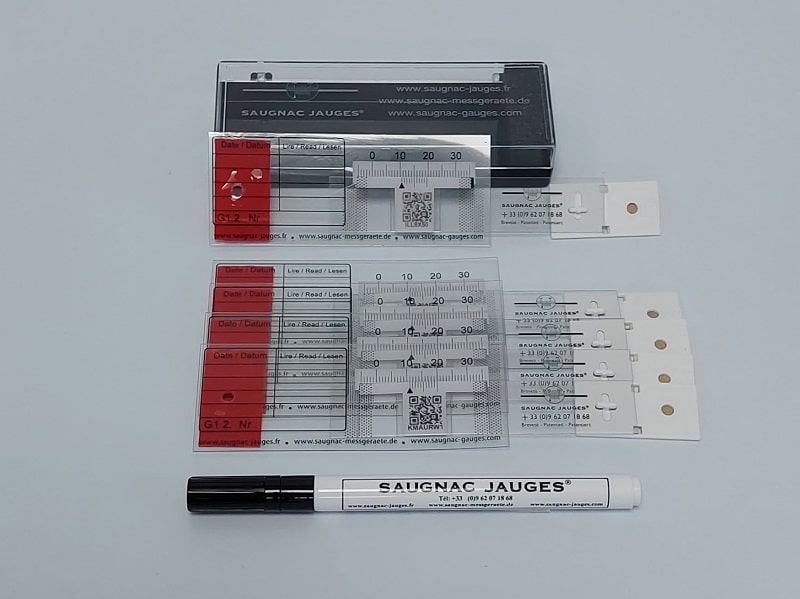

  • Supplied in boxes of 5 gauges with 1 pen and instructions for use

Made in France

Delivery time and shipping costs
  • Standard shipping in Europe between 48h and 96h (not guaranteed) : from 18,80€ w/o VAT to 29,40€ w/o VAT (Postage paid: 555€ w/o VAT)
  • Express shipping in Europe between 24h and 76h (not guaranteed) : from 76,10€ w/o VAT to 127,90€ w/o VAT
Download detailed documentation
Technical specifications
Fixing, reading and monitoring
Related products

Technical specifications

The G1.2 gauge is identical to the G1 gauge but is transparent for use on quality structure (decorated interiors, stone facades, …) to be unobstrusive and barely visible.

  • Resolution
    0,1 mm
  • Type of monitoring
    Tracking on 1 axis
  • Type of crack
    Vertical, horizontal and corner cracks with the folding bar
  • Use
    Indoor / Outdoor: weatherproof and UV resistant
  • Fixing
    Gluing with the self-adhesives supplied or mechanical fixing with screws (sold separately)
  • Installation conditions with self-adhesive
    Installation temperature: 10°C to 35°C (0°C acceptable*). Effective bonding from -35°C to +90°C
    *heat the stickers on the gauge and bar for a few seconds in your hands
  • Dimensions
    160 mm with folding bar x 40 mm x 3 mm
  • Maximum amplitude
    approx. 20 mm (possible variation between maximum and minimum measurement)
  • Weight
    4 g
  • Material
    Extruded PVC
  • Coefficient of linear expansion
    7.10-5 m/m/°C

Reading and fixing

The G1.2 gauge is part of the G1 Saugnac type gauges based the same concepts :

    1. They can be fixed in place using self-adhesive tabs or using mechanical fixing with screws : two ø 4 mm holes facilitate fixing using plugs and screws on difficult structures where self-adhesion and sticking are not possible.
    2. The gauge is delivered with a foldable plastic angle bar inserted into a slotted hold. This patented system offers two advantages : the possibility to fix the jauge in angle easily, and the absorption of unwanted movement in other axis that could block the gauge. More explanations on fixing principles are available on G1 product page.
    3. Measurements are made using a vernier measuring to 1/10th of a mm. More explanations about reading principles available on G1 product page.
    4. Each gauge is uniquely identified with an ID and a QR code.
    5. A free application is available for tracking and automatic reading on https://saugnac.app. Find all the explanations on how the application works. If you do not wish to use an application, a monitoring Excel file is also available to monitor the measurements of your sites.
